Fence configuration · Rev 1
Standard 1 m fence-top installation

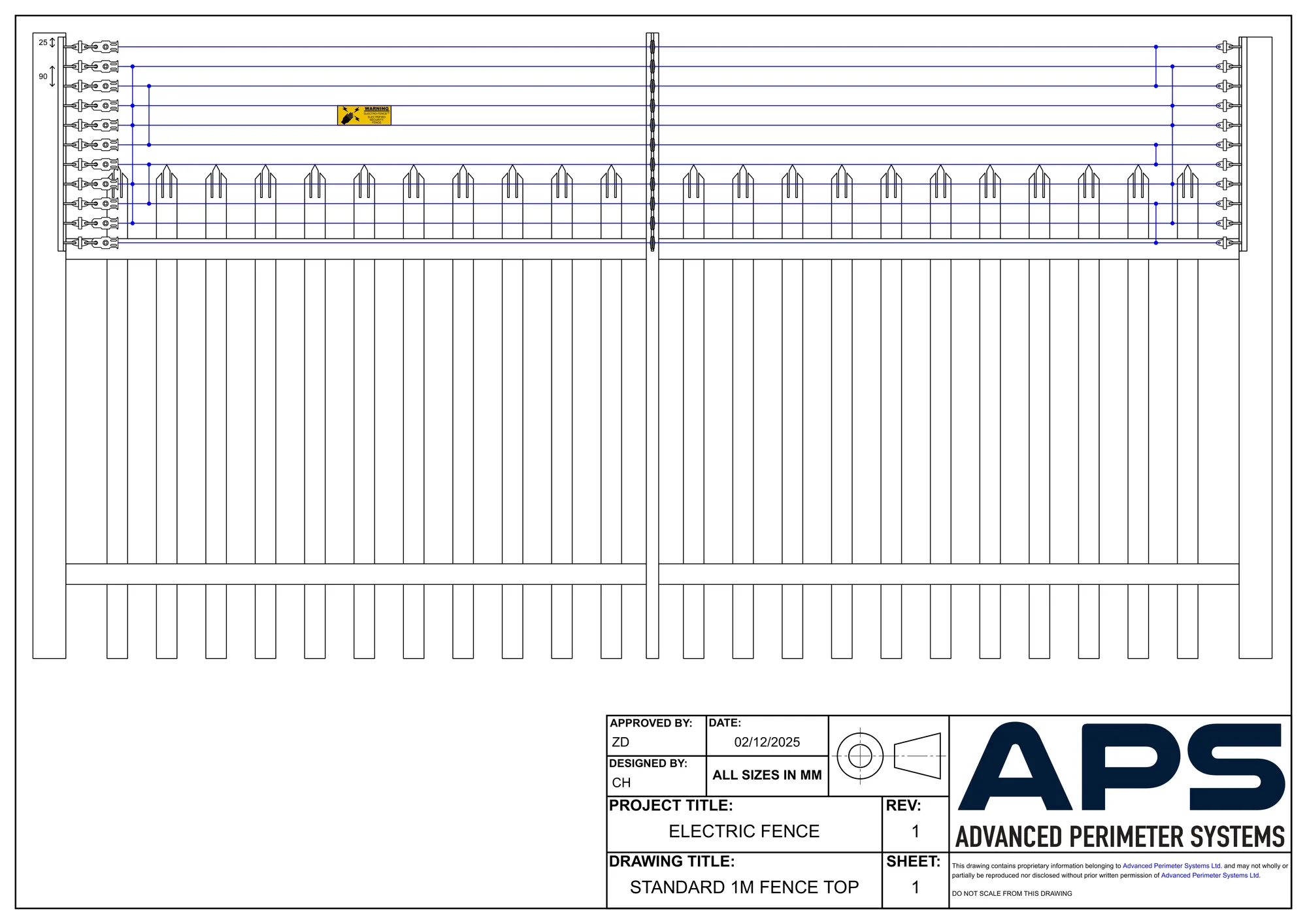

Typical arrangement for a 1 m Electro-Fence™ array mounted on top of an existing security fence, showing wire spacing, insulator positions and the warning-sign location.
Sheet 1 of 1
100%
Native CAD
Request the DWG for this drawing.
APS issues native DWG files directly to architects, consultants and installers so that drawings can be incorporated into project documentation at the correct revision. Requests are answered by the APS drawing office.
