Name: Omni Guard Radar
Brand: Advanced Perimeter Systems

Overview

Omni Guard Radar provides integrated surveillance for building sites and other large-perimeter applications. The solution combines perimeter radar with a PTZ camera, 4G transmission, local recording, alarm integration and battery backup, deployable as a bespoke mobile platform or a fixed installation.

With an operational range of up to 200 metres, a single system can cover an area of approximately 125,000 square metres. The radar detects movement from people and vehicles in all weather conditions, and when movement is detected the PTZ camera is automatically directed towards the target for clear imagery day and night.

Unlike PIR sensors, which rely on detecting emitted heat, radar is an active system that measures the environment. Advanced algorithms with sensitivity and clutter settings let the installer define active detection areas across 36 zones, reducing false alarms from trees, small animals and nearby roads, while multi-level cause-and-effect rules route each alarm to the right responder.

For long, straight boundaries, Beam-Guard Perimeter Radar creates a narrow beam-break detection zone of up to 400 metres between two units, combining the detection probability of microwave PIDS with radar geo-positioning and slew-to-cue camera control.

Datasheets & downloads

Key Features

Up to 200 m operational detection range over a full 360°
Scans the full 360° every second, 400 m diameter coverage
Covers approximately 125,000 m² from a single system
Detects people and vehicles in all weather, day and night
Tracks a person or vehicle within detection range and highlights geolocation
Tracks up to four people or vehicles simultaneously per sector, filtering out small animals
36 configurable detection zones with sensitivity and clutter control
Automatic PTZ camera direction to the detected target
Multi-level cause-and-effect alarm routing
4G transmission, local recording and battery backup
Mobile platform or fixed installation

Applications

Building & construction sites
Solar farms & open estates
Utilities & substations
Ports, docks & laydown yards
Temporary & rapidly changing perimeters

Technical Specifications

Engineered to perform under pressure.

Detection Range	Up to 200 m in all directions (400 m diameter)
Coverage	360° · approx. 125,000 m² per system
Scan Rate	360° every second
Tracking	Up to 4 people or vehicles per sector
Resolution	≈ 1.5 m range · ≈ 2.6° angular
Minimum Target Speed	0.5 m/s nominal
Targets	People & vehicles · all weather
Zones	36 configurable detection zones
Verification	Automatic PTZ slew-to-target
Communications	4G transmission · local recording
Power	Mains or battery backup
Alarm Handling	Multi-level cause & effect routing · VMS integration
Software	Built-in, no software licence

Technical Drawings

Omni Guard Radar drawings for specifiers.

1 sheet from the APS drawing office. Preview online, download the PDF, or request the native DWG.

All Omni Guard Radar drawings

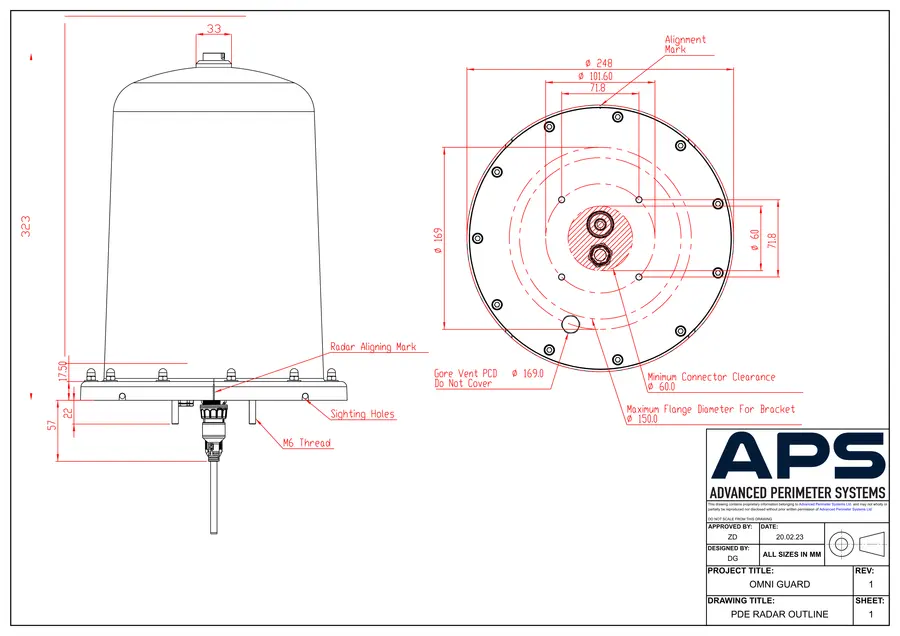

Omni Guard PDE radar outline technical drawing, sheet 1

Rev 1

Omni Guard RadarProduct outline

Omni Guard PDE radar outline

View sheet →PDF Request DWG

How It Works

Detect. Deter. Alert. Record.

01

Scan

The radar actively measures the environment across the protected area, in all weather, day and night.

02

Detect

Movement from people or vehicles is detected and checked against 36 configurable zones and clutter settings.

03

Verify

The PTZ camera is automatically directed to the target, giving operators clear visual verification.

04

Respond

Cause-and-effect rules route the alarm to the right operator, supervisor or monitoring station.

In The Field

Omni Guard Radar in action.

Commercial

Mobile radar surveillance for a live building site

A changing building-site perimeter secured with a mobile Omni Guard Radar platform: 200 m detection, automatic PTZ verification and 4G transmission, with no fixed infrastructure.
